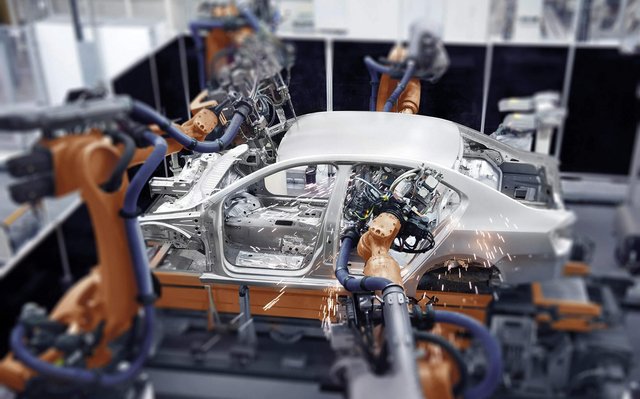

Automobile and e-mobility
Narrow weld seams and optimum component hardening

Short cycle times, a high level of automation and a low rejection rate are key parameters in the automotive industry. Electron beam technology offers the perfect prerequisites for welding conductive metals such as copper and nickel or lightweight metals such as aluminum and aluminum alloys with very narrow seams or for hardening components.

The electron beam is also an efficient and economical tool for precise welding of filigree copper hairpins such as those used in electric drives. Electron beam technology offers manufacturers easy automation, comprehensive monitoring of all process parameters and high design freedom for the production of vehicle components such as chassis, drive trains, transmissions and engines.

© Jenson/Shutterstock.com

Frequent applications

  • Charge controller housing, hairpin, short circuit roller
  • Flap plate (valve) for turbo chargers
  • Control gears
  • Planetary carriers
  • Piston rods
  • Drive shafts, even as a hollow shaft (30% weight savings)
What our customers say about us
Readiness to help, flexibility, highly qualified expert personnel and a solution-centered collaboration is what this company is all about. We thoroughly recommend pro-beam for their reliable customer service – before and after the project phase.
Járfás Dávid, Audi Hungaria

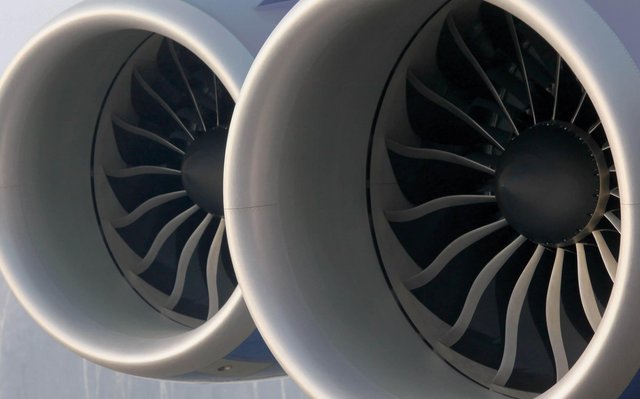

Aerospace industry
Automated seam tracking even for complex components

Aerospace companies have been relying on products developed by pro-beam for many years. Electron beam technology is ideally suited for large components with aerodynamic properties, complex structures and complex materials such as titanium alloys. Thanks to an automated seam tracking process, we increase the output five-fold during the welding of engine blades. Electron beam technology is now also the main process used for repair welding because it guarantees to deliver the required quality trusted by air passengers. The continuous recording of process parameters ensures quality monitoring and documentation at all times.

© Fasttailwind/Shutterstock.com

Typical applications

  • Engine components, e.g. turbine blades
  • Armrests for passenger aircraft
  • Fuel tanks (e.g. for the Ariane space research rocket and satellites)
What our customers say about us
MT Aerospace AG has been working closely with pro-beam for many years. Together, we have been able to achieve mass production at the highest standards, three times stricter than the norm. This is especially remarkable when seen in the context of a large component with a 6 m diameter and a 70 mm weld seam depth and the use of special aerospace aluminum alloys.
MT Aerospace AG

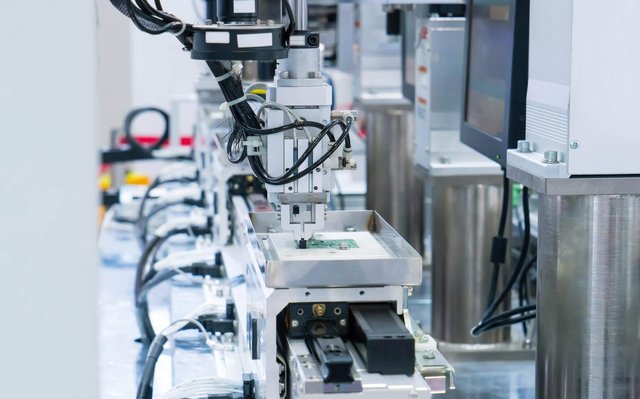

Mechanical and plant engineering
Welding of thick-walled components and stainless steels

With a potential weld penetration depth of over 150 mm and a narrow seam geometry, the electron beam is ideal for welding thick-walled components and stainless steels, as for example used for containers and vessels in mechanical and plant engineering. Electron beam welded seams don't just have a high load-bearing capacity, but they also ensure leak tightness. This joining technology reliably prevents the vessel contents being contaminated by the manufacturing process because no additional material is required for the process. In addition, production time can be reduced thanks to the one-step welding process and the fact that, in contrast to conventional welding processes, no reworking is required.

© asharkyu/Shutterstock.com

Typical applications

  • Vessels and containers for plant engineering
  • Tool clamping bushes
  • Piston rods
  • Centrifuge rotors
What our customers say about us
In special machine construction, customized and non-standardized solutions are often used. In combination with the "beverage and food industry", all components quickly become an elementary component to ensure hygiene, safety and quality. Regardless of whether we are dealing with large components or just an insignificant weld seam. pro-beam is the company at Krones side that ticks all the boxes. And the collaboration with pro-beam goes beyond a normal customer-supplier relationship. For Krones, it has become a true partnership.
Hermann Schuster, Krones AG
Power engineering
A unique combination: Tungsten and copper

Switches made from tungsten are frequently joined to copper for power engineering applications. Tungsten offers high temperature stability while copper is electrically and thermally conductive. The electron beam process is well suited for welding combinations of both metals. In addition, electron beam technology achieves virtually non-porous weld seams - an important prerequisite for applications in which high electric currents flow over moving contact points.

© gyn9037/Shutterstock.com

Typical applications

  • High conductor lines
  • Circuit breakers
  • Power rings
Semiconductors
Welding instead of soldering

A thick seam and long-term stability are major factors for the manufacturing of cooling elements made from copper, aluminum or titanium, which are used, for example, in coating systems for the semiconductor industry. As a result, electron beam welding therefore represents a popular alternative to soldering in the high-tech industry. Thanks to low heat input and minimal warping, mechanical and technological properties remain intact. This allows manufacturers to use more affordable materials.

© Your lucky photo/Shutterstock.com

Typical applications

  • Cooling plates
Medical engineering
Implants without residues that can be placed immediately

Safety takes top priority in medical engineering. Therefore, products and manufacturing processes are subject to strict standards and regulations. All metals used in medical engineering ( including titanium, which is especially popular as an implant material) can be successfully joined using electron beam technology. And their bio-compatibility remains intact.

In this regard, electron beam welding ticks all the boxes by producing very narrow and corrosion-resistant seams in a straight-forward fashion. Thanks to the low heat input, the material properties of the implants remain intact. Implants can be used almost straight away and with no welding residue because the electron beam welding process takes place in a vacuum.

© peterschreiber.media/Fotolia

Typical applications

  • Anesthesia tanks
  • Components for prosthesis
  • Pacemakers
  • Artificial joints
Science and research
Expert teams for large component projects

We have decades of experience and proven know-how as development partners for “Big science” projects. With modern, process-oriented machinery and a development team of experienced process engineers and project managers, we are the best equipped to meet your industry requirements. Our quality management process is subject to various standards. pro-beam also operates according to the RCC-MR (French nuclear code), among others.

© Likoper/Shutterstock.com

Large research projects with pro-beam involvement

  • Xenon: Neutrino experiment in Gran Sasso (Italy) for the CERN industrial laboratory
  • Dresdyn: Sodium facility (Dresden) for generator experiments and thermo-hydraulic studies at the Helmholtz Center Dresden-Rossendorf (Germany)
  • ITER: Fusion reactor for the generation of energy, Cadarache (France)
What our customers say about us
The 208 cubic meter vacuum chamber, 40 kW generator with a portal suspension, wire feeder units and advanced beam control system of the pro-beam installation at Nuclear AMRC offers us unique opportunities to advance technical development. Thus we are able to work together with industry partners to use electron beam welding for highly complex joining processes as well as in additive manufacturing, in the nuclear sector and beyond.
Bernd Baufeld, Namrc
